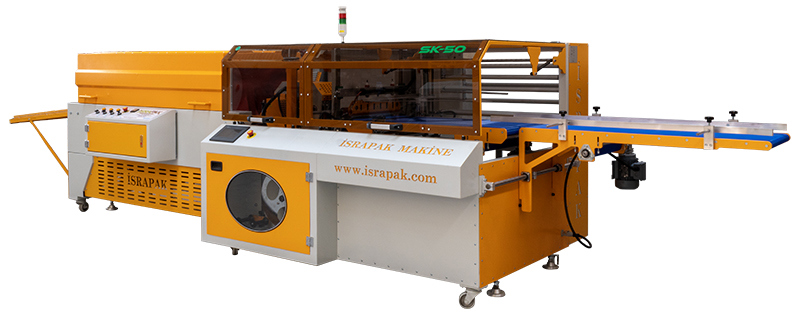

Fixed Jaw Continuous Cutting Automatic Shrink Wrapping Machines
Fixed Jaw Continuous Cutting Automatic Shrink Wrapping Machines
The Continuous Shrink Wrapping Machine is a PLC-controlled automated packaging solution that enables fast and consistent packaging of products with polyolefin film. Its servo motor technology, precise temperature control, and easy integration into production lines allow for efficient operation in high-tempo packaging processes.
Fixed Jaw Continuous Cutting Automatic Shrink Wrapping Machines
Our continuous shrink wrapping machines perform the process of wrapping all your products with polyolefin packaging in a series. They operate quickly and smoothly thanks to PLC control and servo motor use, eliminating the need for air. They can be easily and directly integrated into production lines. Recipe generation is possible thanks to the memory-based and recallable temperature and position settings. Temperature controls can be precisely adjusted via PDI control on the screen. Product packaging is carried out safely thanks to safety sensors and operating photocells. Mechanical and electrical safety production complies with CE mark directives. It is guaranteed for one (1) year, excluding wear parts. Spare parts and after-sales manufacturer support are available. Parts supply is available under manufacturer warranty for seven (7) years.
Technical Specifications
| Machine Specifications | Unit Of Measurement | İSRA SK-50 |
İSRA SK-65 |
İSRA SK-80 |
|---|---|---|---|---|
| Machine Size (L-W-H) | mm | 6350-1550-1550 | 6350-1650-1550 | 6350-1800-1550 |
| Maximum Packing Size | mm | 400-170- Limitsiz Limitless |
550-170- Limitsiz Limitless |
650-170- Limitsiz Limitless |
| Maximum Packing Width | mm | 600 mm | 700 mm | 800 mm |
| Cutting Jaw Height | mm | 500 mm | 600 mm | 700 mm |
| Cutting Jaw Height | mm | 180 mm | 180 mm | 180 mm |
| Capacity | Paket / dk. Pack / min. |
15-35 | 15-35 | 15-35 |
| Electrical Connection | 380 V 50 HZ | 380 V 50 HZ | 380 V 50 HZ | |
| Changeable Format Thanks to Saving to Memory For Products | 1-99 Pcs. | 1-99 Pcs. | 1-99 Pcs. | |
| Electro Static Paint | ✔ | ✔ | ✔ | |
| Vertical Jaw Height Adjustment From The Screen | ✔ | ✔ | ✔ | |
| Jaw Security Sensor | ✔ | ✔ | ✔ | |
| Touch Screen 7" | ✔ | ✔ | ✔ | |
| The Possibility For Speed On Screen | ✔ | ✔ | ✔ | |
| Alarm Page | ✔ | ✔ | ✔ |

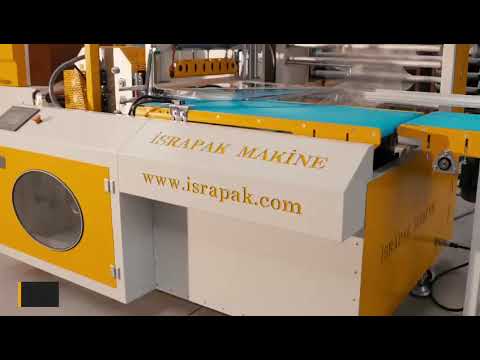

Product Videos
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶
