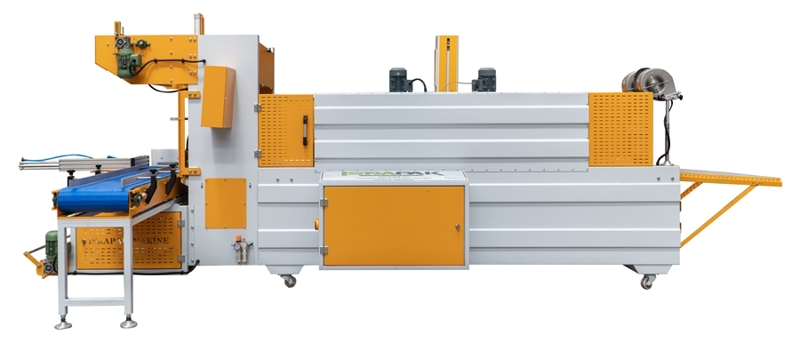

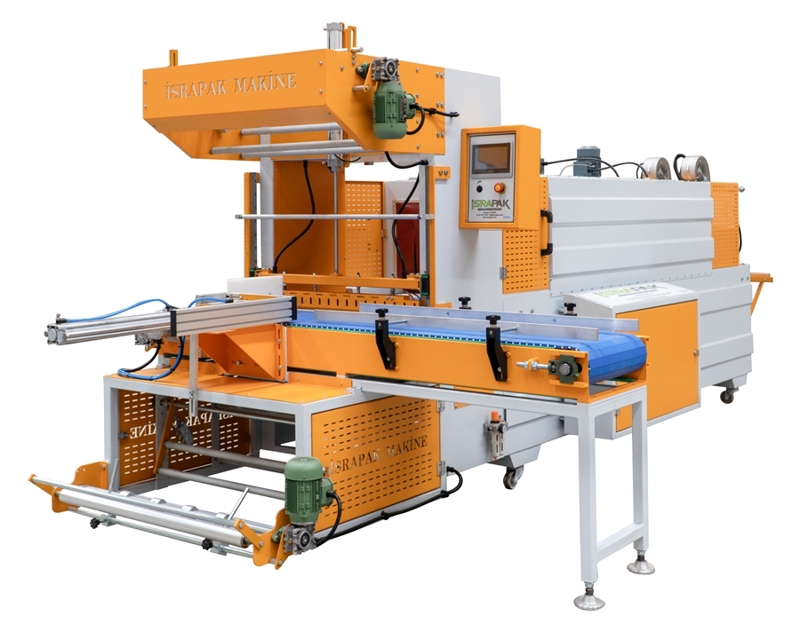

Side-Feed Shrink Wrapping Machines
The Side-Feed Shrink Wrapping Machine is designed for grouping products in specified quantities and packaging them with shrink film. Its ability to be integrated into production lines or fed manually allows it to adapt to different packaging needs; it also contributes to reducing carton and labor costs.
Side-Feed Shrink Wrapping Machines
Side-fed shrink wrapping machines are generally recommended for products that require grouping. They perform shrink wrapping by grouping products coming from the production line in quantities such as 4, 6, or 812. They provide businesses with savings in terms of packaging and labor costs. They can be used mounted on your production line or fed manually from outside. We manufacture in different sizes and designs according to your needs. Mechanical and electrical safety is ensured in accordance with CE mark directives. It is guaranteed for two (2) years, excluding wear parts. Spare parts and after-sales manufacturer support are available. Parts supply is available under manufacturer warranty for seven (7) years.
Technical Specifications
| Machine Specifications | Unit Of Measurement | İSRA 60-Y.B. | İSRA 70-Y.B. | İSRA 80-Y.B. | İSRA 100-Y.B. |
|---|---|---|---|---|---|
| Size Of Heat Tunnel (W-L-H) | mm | 600-450-1950 | 700-450-1950 | 800-550-1950 | 1000-650-1950 |
| Maximum Size Of Packing (W-H-L) | mm | 550-400-900 | 650-400-900 | 750-500-1200 | 950-600-1200 |
| Maximum Packing Width | mm | 700 | 800 | 900 | 1100 |
| Cutting Jaw Length | mm | 700 | 800 | 900 | 1100 |
| Maximum Jaw Height | mm | 400 | 400 | 500 | 600 |
| Capacity | Paket / dk. Pack / min. |
6-12 | 6-12 | 4-8 | 4-8 |
| Electrical Connection | 380 V 50 HZ | 380 V 50 HZ | 380 V 50 HZ | 380 V 50 HZ | |
| Bar Pressure Requirement | 6-8 BAR | 6-8 BAR | 6-8 BAR | 6-8 BAR | |
| Changeable Format Thanks to Saving to Memory For Products | 1-99 Adet / Pcs. | 1-99 Adet / Pcs. | 1-99 Adet / Pcs. | 1-99 Adet / Pcs. | |
| Electro Static Paint | ✔ | ✔ | ✔ | ✔ | |
| Plc - Touch Screen | ✔ | ✔ | ✔ | ✔ | |
| Speed Control On Screen | ✔ | ✔ | ✔ | ✔ |

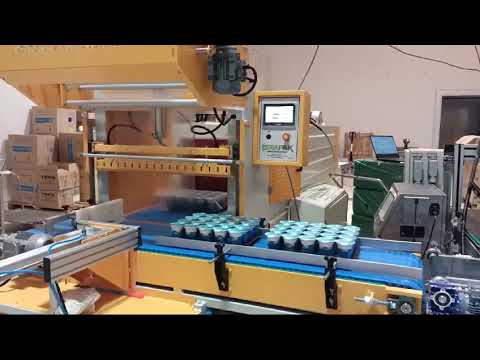

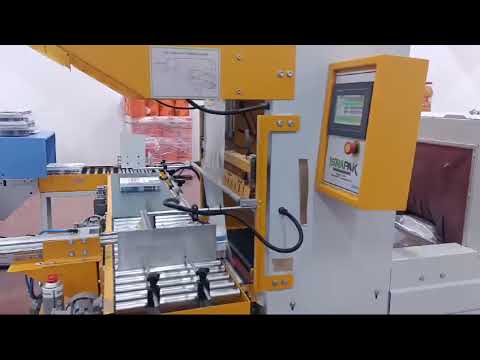

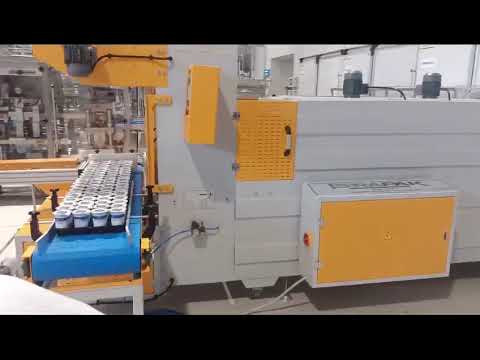

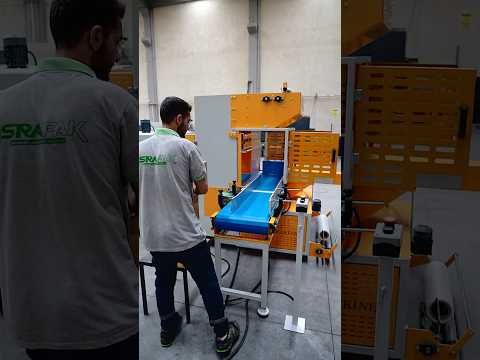

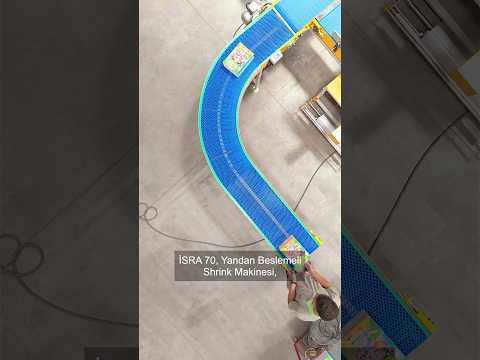

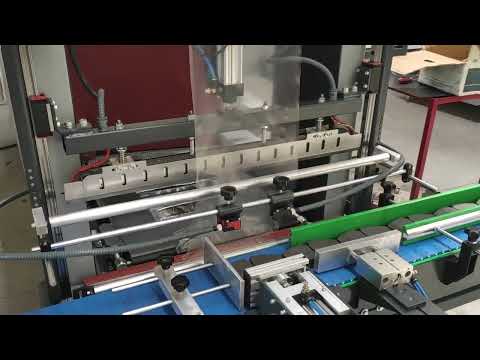

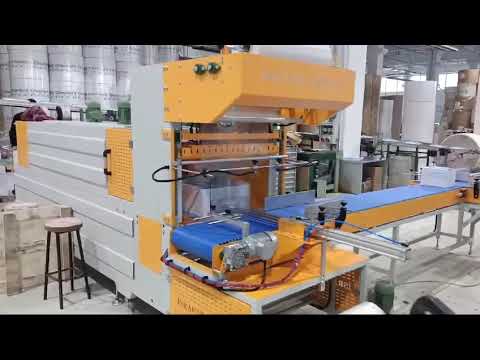

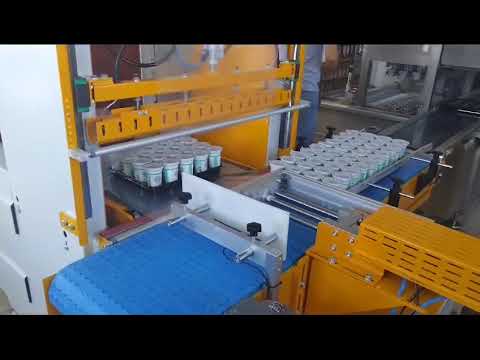

Product Videos
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶
